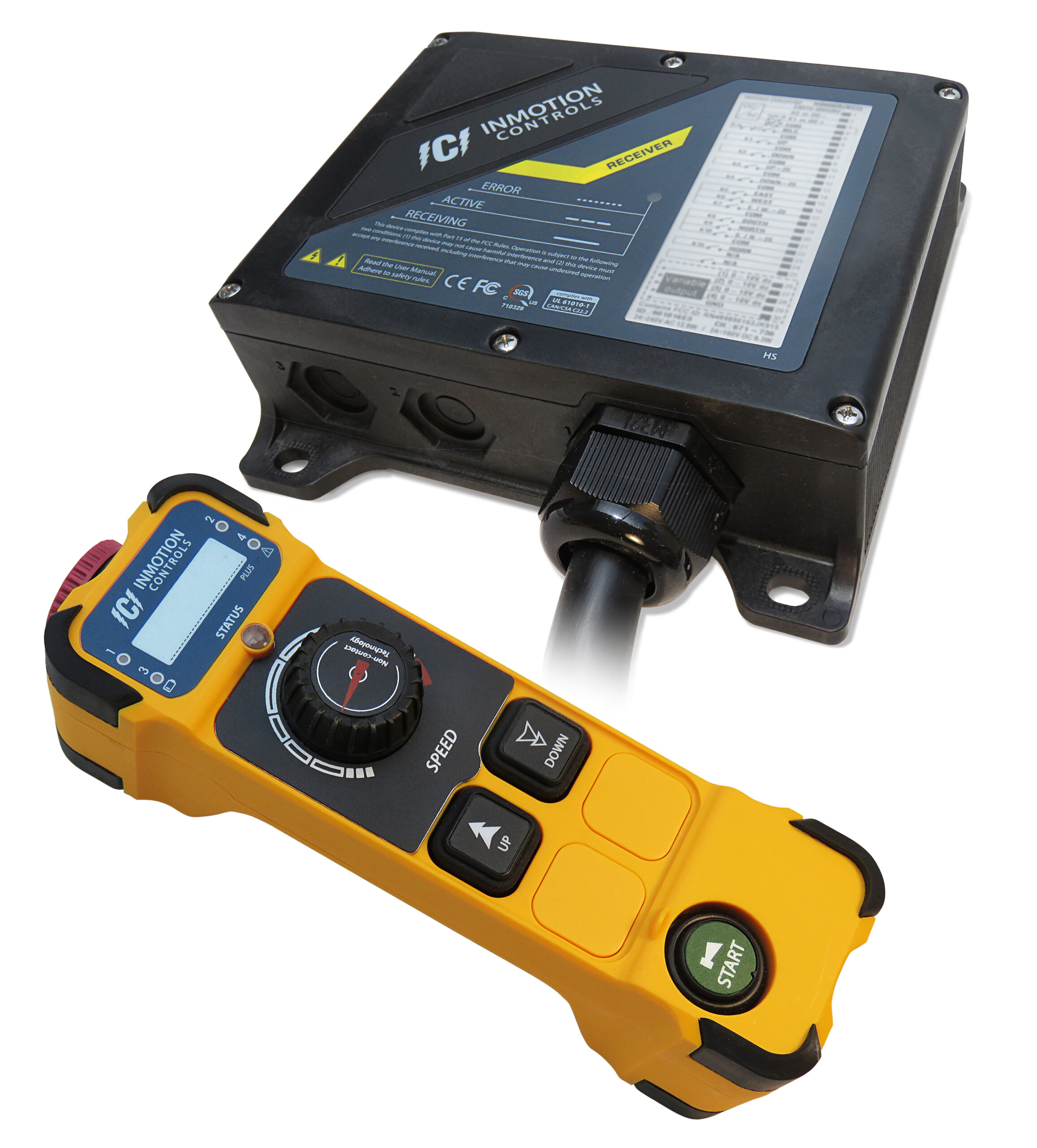

K Plus Series K202 R Full Variable System

The K202 Full Variable System is a 1 motion, Full Variable control solution for a single function control or monorail hoist applications.

  • Complies with UL 61010-1 and CSA C22.2
  • “Qi” Wireless Charging (transmitter)
  • G-Force Shock Detection with Disable
  • Operating Voltage 24 – 240 VAC / 24 – 160 VDC
  • NiMH Transmitter Batteries Included
  • 900MHz FCC, IC and CE Compliant
  • IP 65, PA6 Nylon – 30% Glass Filled Enclosure

Each system includes one receiving unit, one transmitter with legend sheet, batteries, Qi Charging Pad, lanyard, mounting hardware and installation instructions.

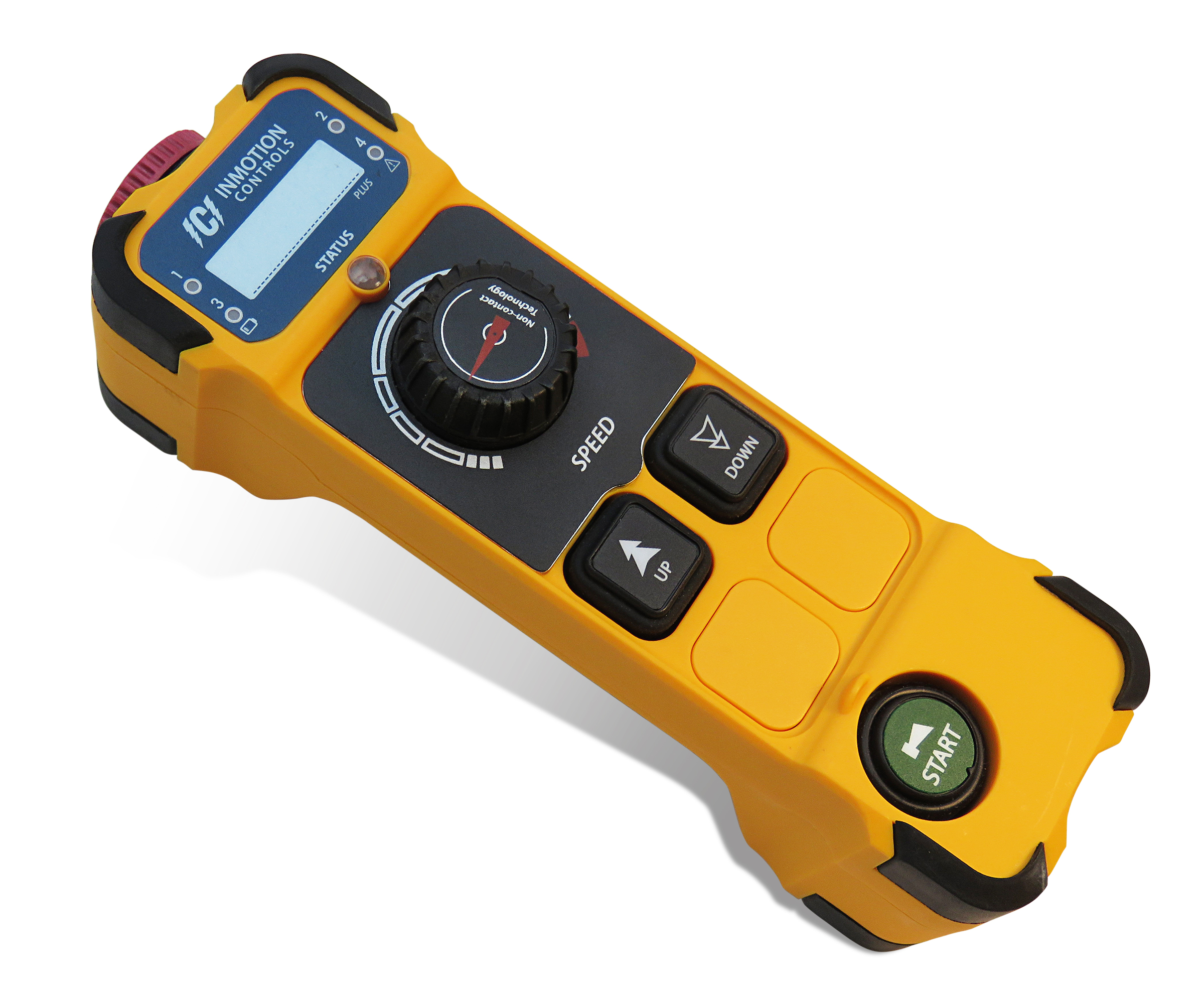

TRANSMITTER (K202 Full Variable)
Frequency 902.5 – 927.5 MHz
Modulation Method 2GFSK
Typical Operating Range 300 feet (100 Meters)
Power Supply 2 X 1.5V NiMH “AA” Battery
Average Power Consumption 38mA @ 2.5VDC
Operating Temperature -40F to +149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimension 7.63”×2.25”×2.00”



RECEIVING UNIT (K202 Full Variable)
Frequency 902.5 – 927.5 MHz
Control System PLL
Power Supply 24 ~ 240 VAC / 24 ~ 160 VDC (auto-sensing)
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimensions 7.46" x 7.22” x 2.52”
Installation and Mounting Single Bolt
