K Plus Series K1010 Plus System
The K1010 PLUS SYSTEM is a 5 motion, 2 step control solution for a multi-function control or bridge, hoist and trolley applications requiring additional multi-speed outputs.

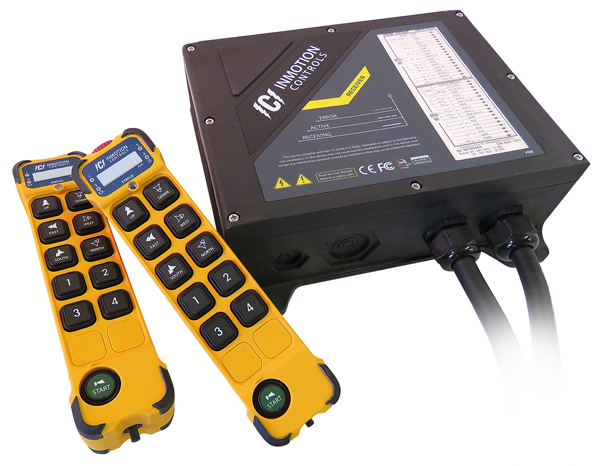

Each system includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware and installation instructions.

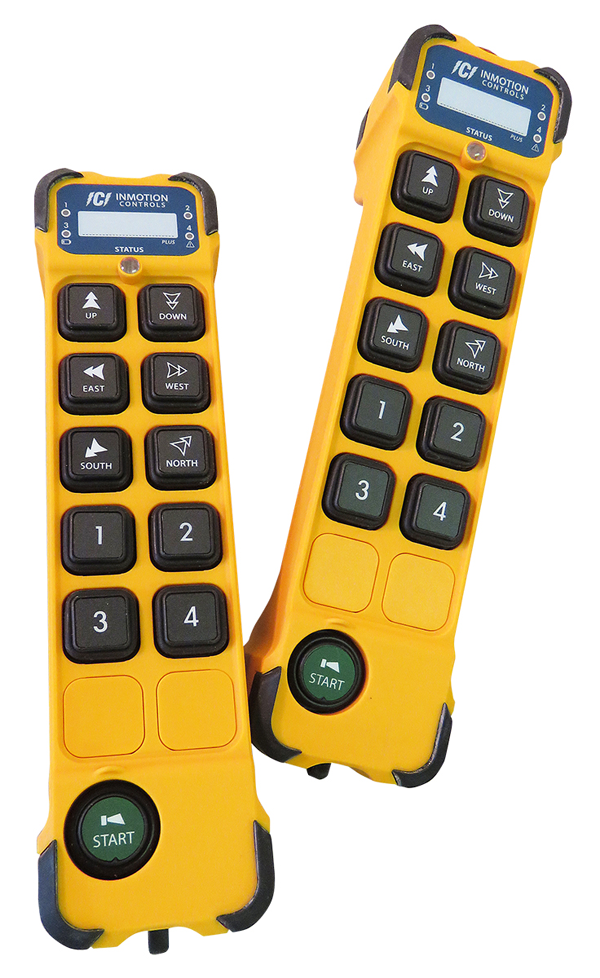

| TRANSMITTER (K1010-K1212 PLUS) | |
|---|---|
| Frequency | 902.5 – 927.5 MHz |
| Modulation Method | 2GFSK |
| Typical Operating Range | 300 feet (100 Meters) |
| Power Supply | 2 X 1.5V NiMH “AA” Battery |
| Average Power Consumption | 38mA @ 2.5VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 193mm x 57mm x 51mm |

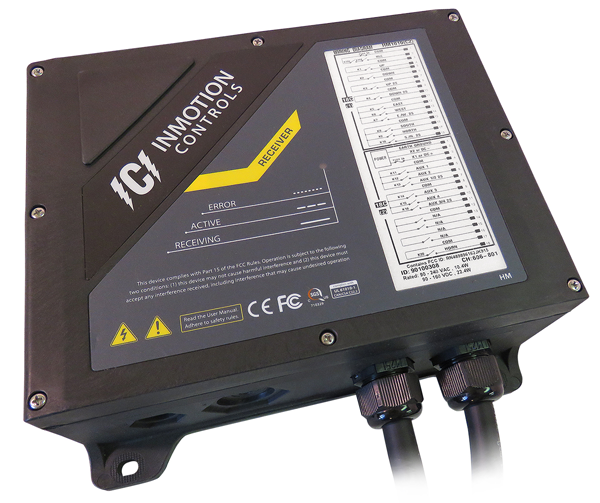

| RECEIVING UNIT (K1010-K1212 PLUS) | |
|---|---|
| Frequency | 902.5 – 927.5 MHz |
| Control System | PLL |
| Power Supply | 90 ~ 240 VAC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 272mm x 260mm x 96mm |
| Installation and Mounting | Single Bolt |
Accessories
These accessories are available for purchase:
- K Plus Series K1010 Plus Replacement Transmitter
- K Series Button Cover
- K Series Hip Belt
- K Series Protective Pouch
- K Series Transmitter Legend Sheet
- K Series 5 Meter External Antenna
- K Series Plus Antenna
- K Series K-TA3W Wireless Light/Siren
- K Series K-TA3W-915 Strobe/Siren
- K Plus Software Interface
