M Series Joystick System

The M Series Joystick system is a 4 Motion, 5 Speed or Full Variable control solution for a multi-function control or hoist, trolley and bridge applications.

  • “Qi” Wireless Charging (transmitter)
  • Optional G-Force Shock and Roll Over Detection
  • NiMH Transmitter Batteries Included
  • 900MHz FCC, IC and CE Compliant
  • IP 65, PA6 Nylon – 30% Glass Filled Enclosure

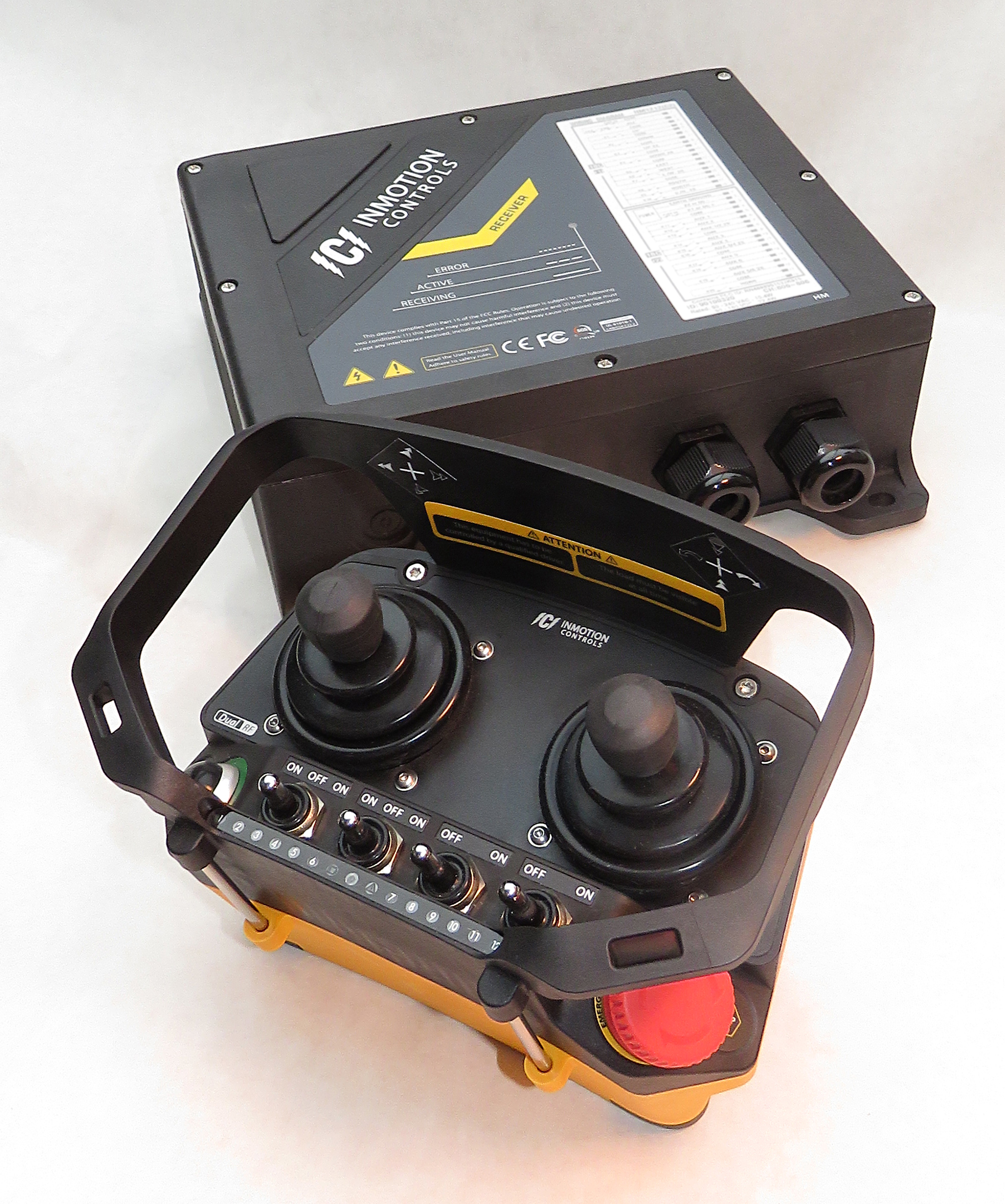

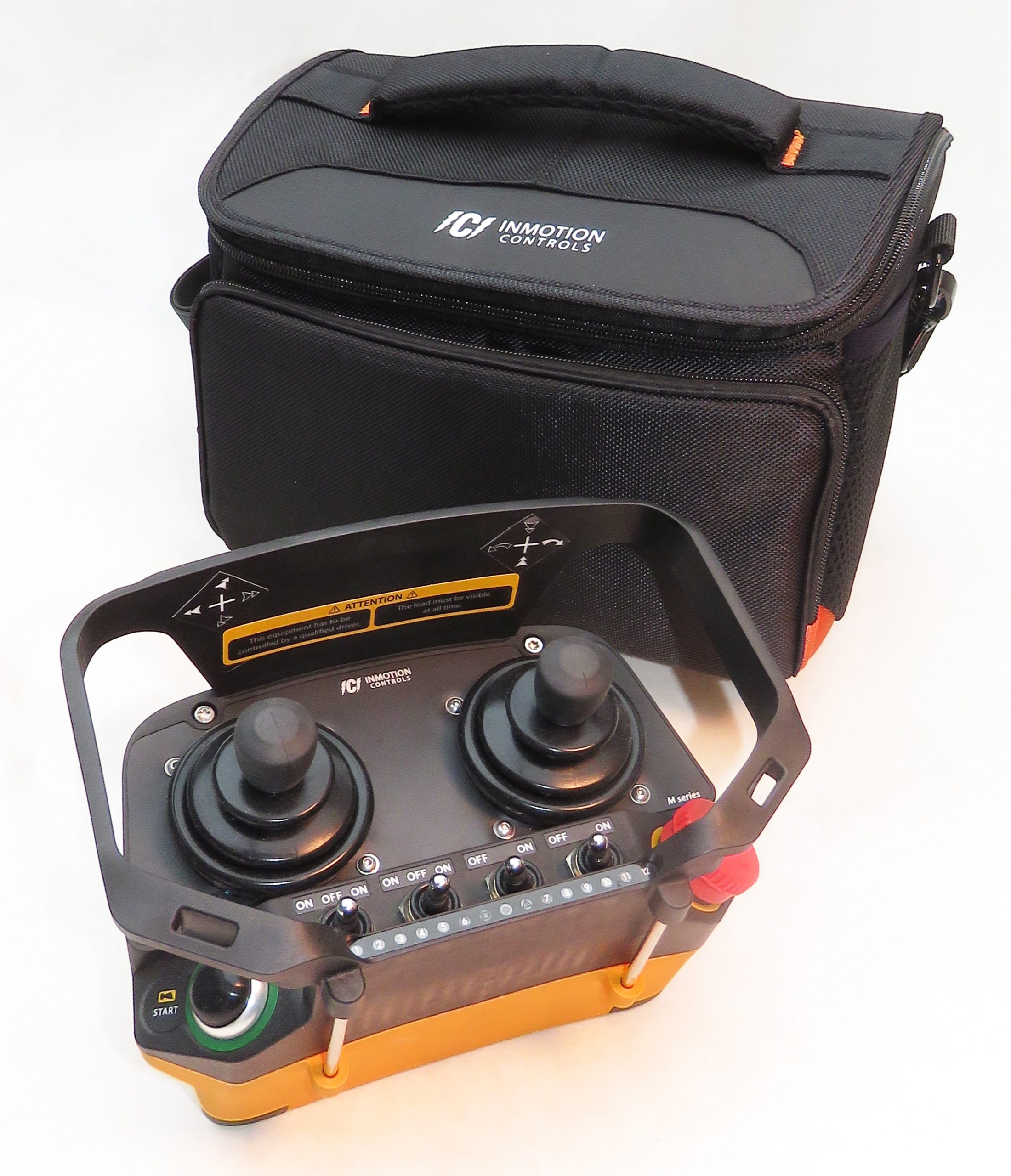

EACH SYSTEM INCLUDES RECEIVER, TRANSMITTER, LEGEND SHEET, RECHARGEABLE BATTERIES, QI CHARGER AND WAIST BELT AND CROSS-BODY SHOULDER STRAP.

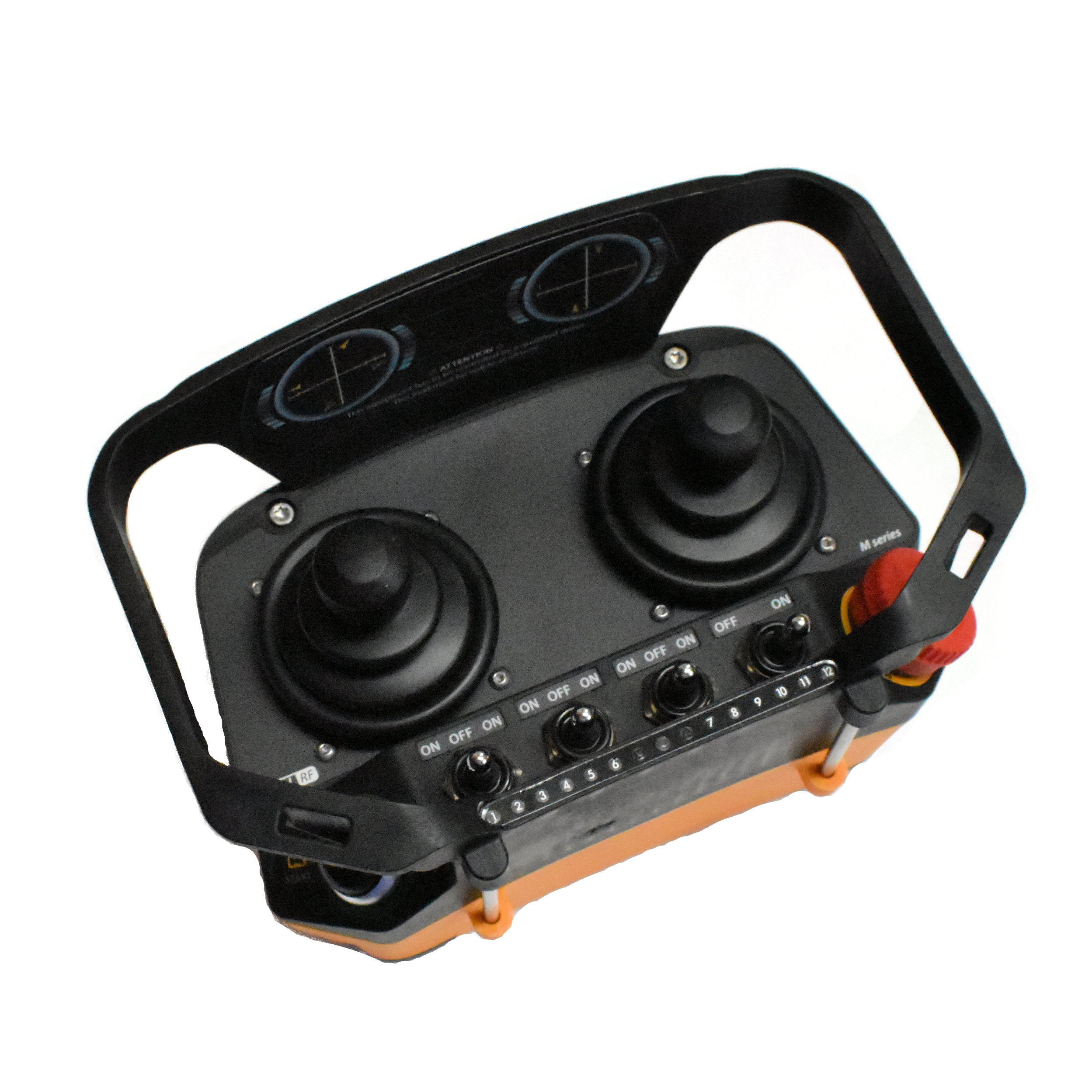

TRANSMITTER (M Series Joystick Transmitter)
Frequency 902.5 – 927.5 MHz
Modulation Method 4FSK
Typical Operating Range 300 feet (100 Meters)
Power Supply 2 X 1.5V NiMH “AA” Battery
Average Power Consumption 36mA @ 3VDC
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimension 7.874" x 5.56" x 5.47"
