Classic Series 220-2-SYSTEM
The 220-2 SYSTEM is a 2 motion, 2 step control solution for a dual function control or monorail hoist and trolley applications.

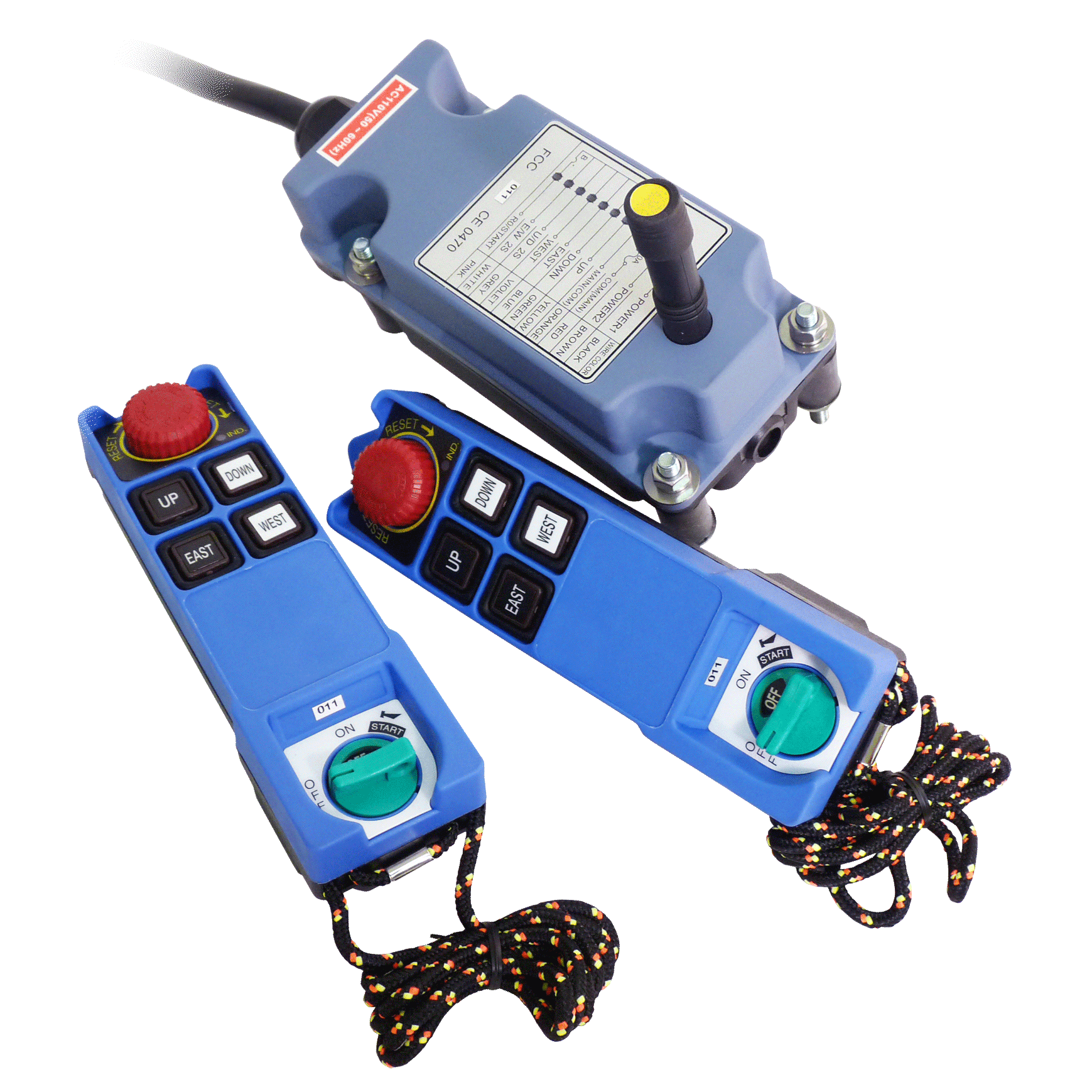

Each system includes one receiving unit, two transmitters with lanyard, batteries, mounting hardware and installation instructions.

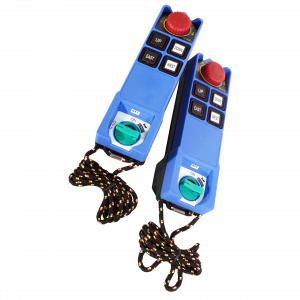

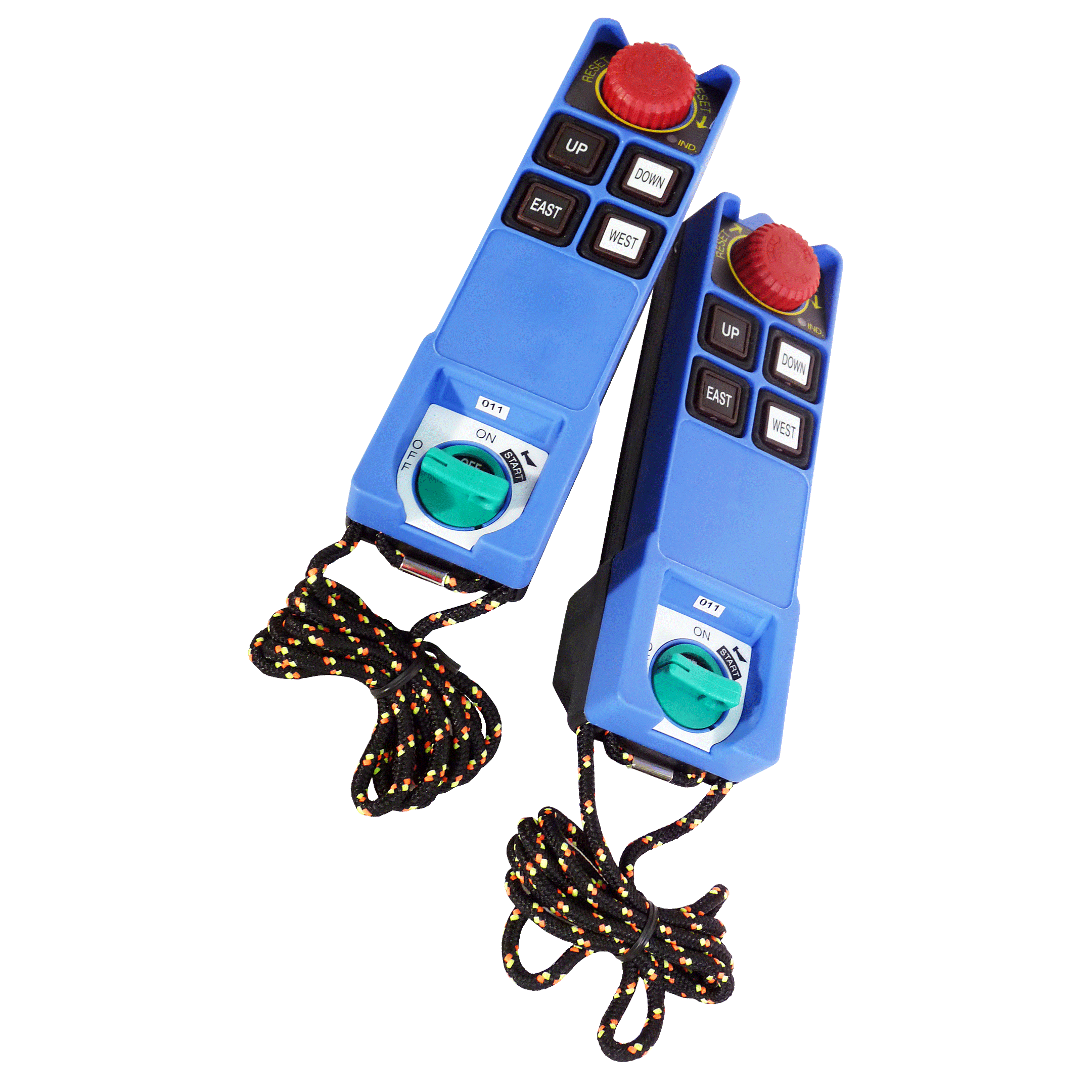

| TRANSMITTER (220 - 260) | |
|---|---|
| Frequency | 310 MHz |
| Modulation Method | 4 FSK |
| Typical Operating Range | 300 ft. (100M) |
| Power Supply | 2 X 1.5V “AA” Battery |
| Average Power Consumption | 10mA Average |
| Operating Temperature | -49F to + 176F |
| Protection Degree | IP65 |
| Housing Material | Fiberglass / ABS |
| Overall Dimension | 6.4 x 1.9 x 1.8 Inches |

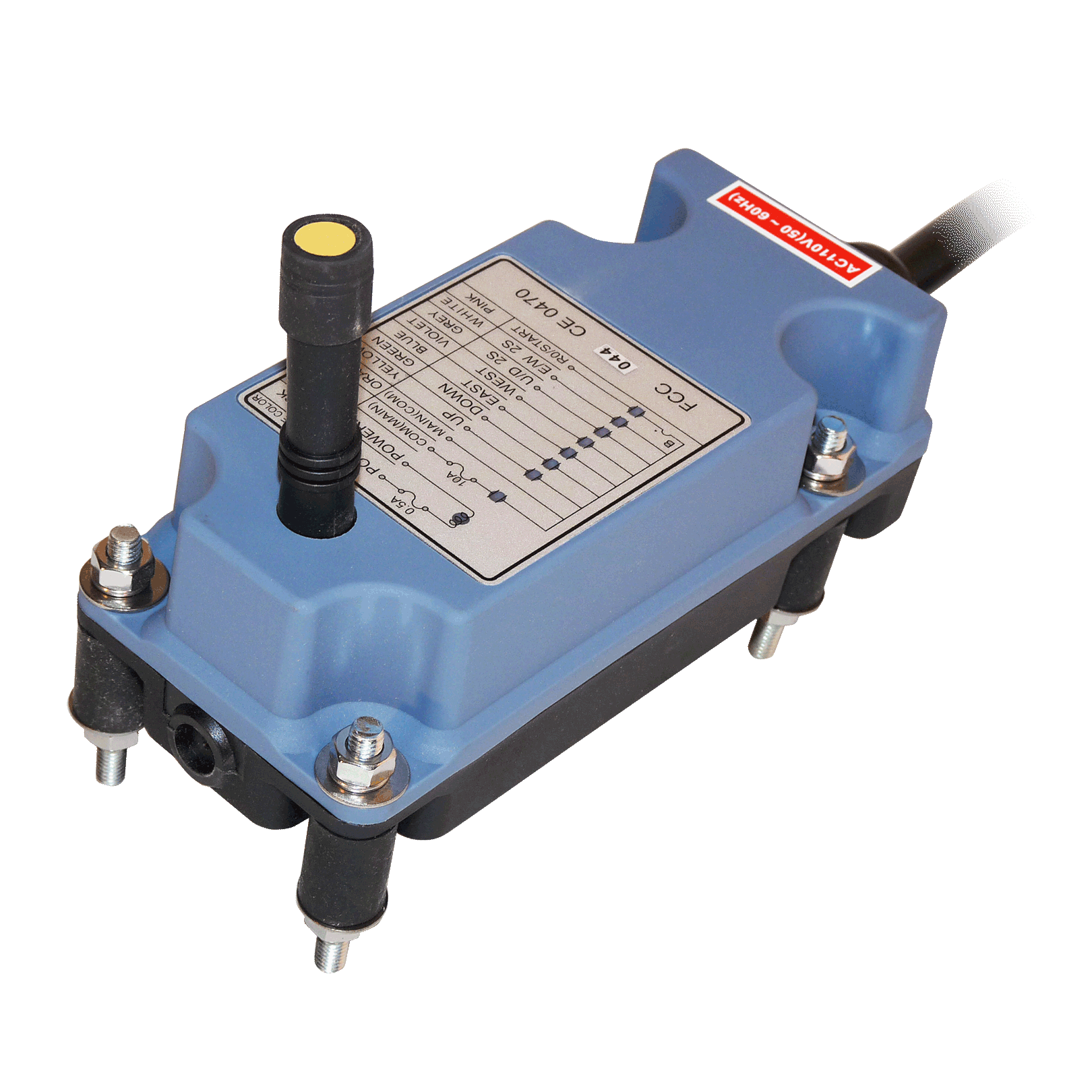

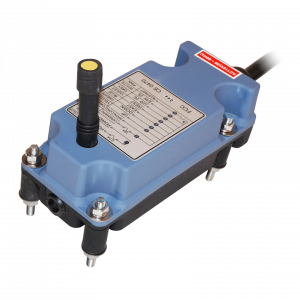

| RECEIVING UNIT (220 - 260) | |
|---|---|
| Frequency | 310 MHz |
| Control System | Crystal |
| Power Supply | 110 ~120 VAC (Standard) 12/24/48/220 (Optional) |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | Fiberglass / ABS |
| Overall Dimensions | 6.34 x 2.91 x 2.05 Inches |
| Installation and Mounting | Four Bolt |
Accessories
These accessories are available for purchase:
