K Series K202-SYSTEM
The K202 SYSTEM is a 1 motion, 2 step control solution for a single function control or monorail hoist applications.
- 433Mhz Multi-frequency with Auto Selection
- Bi-directional Communication
- Auto Power Sensing 24 – 240 VAC / 24 – 160 VDC
- Durable PA6 Construction with Shock Bumpers
- Double Safety Stop MLC Relays
- Interactive System Status LED’s

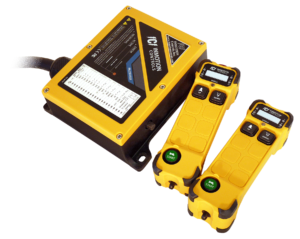

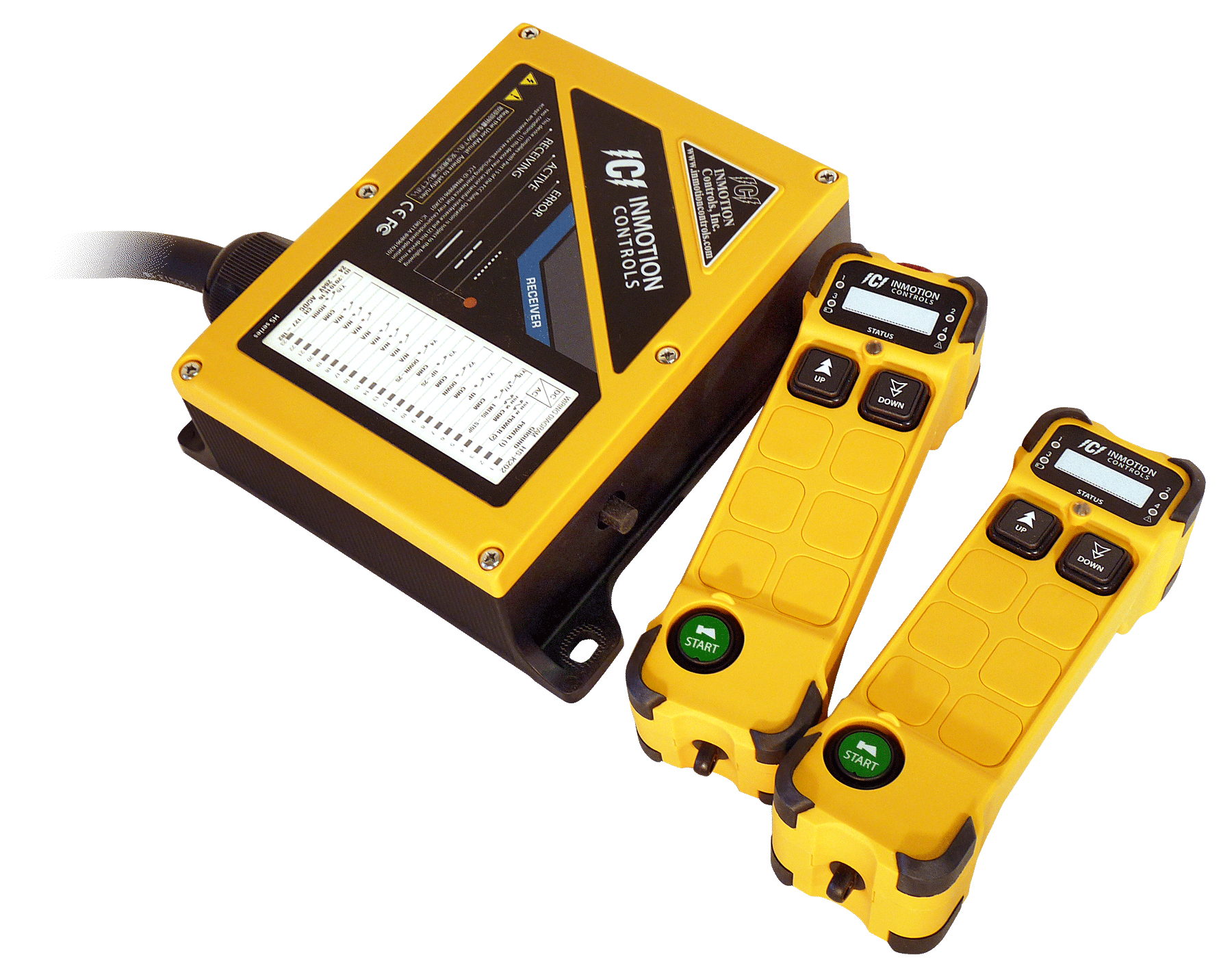

Each system includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware and installation instructions.

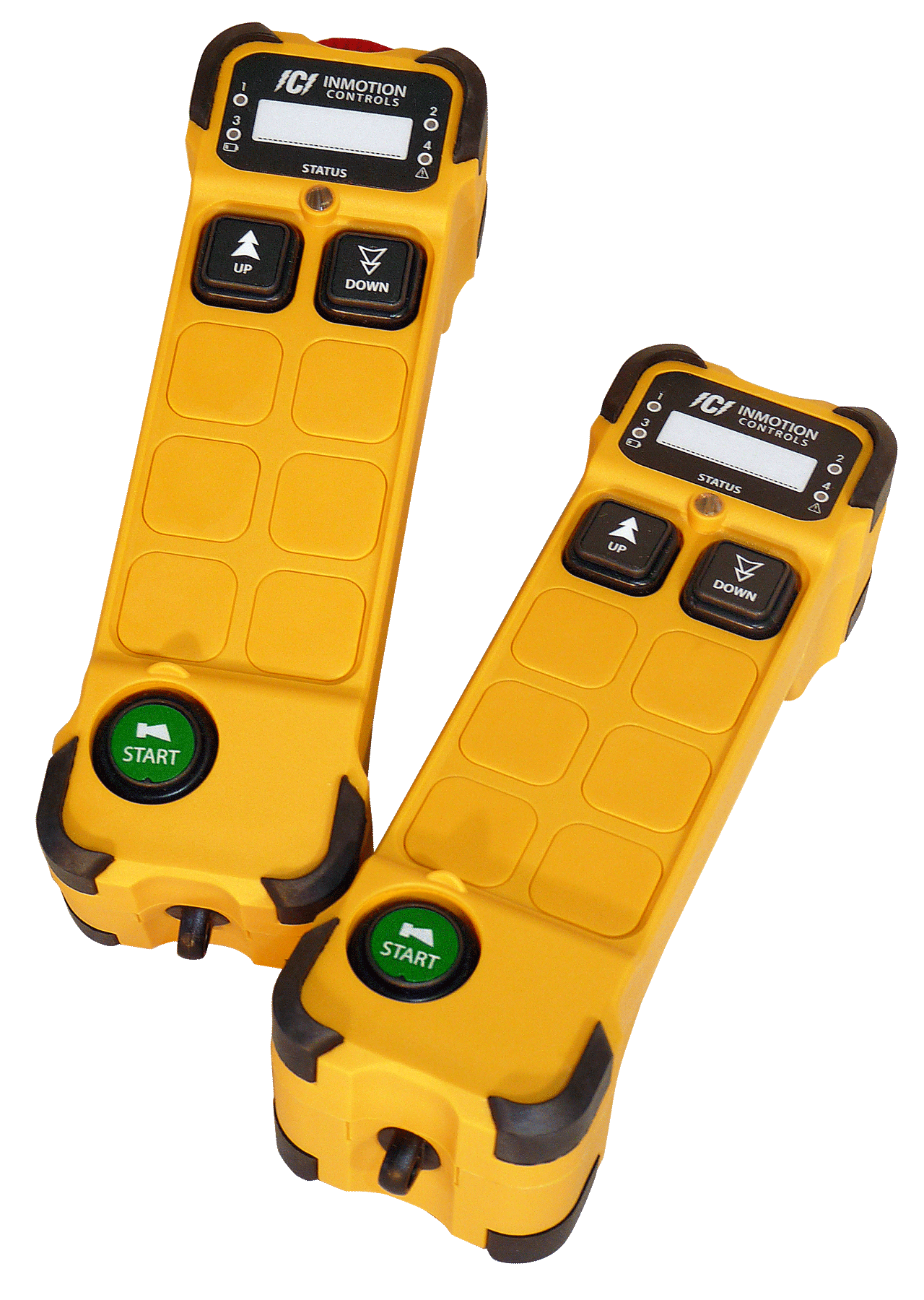

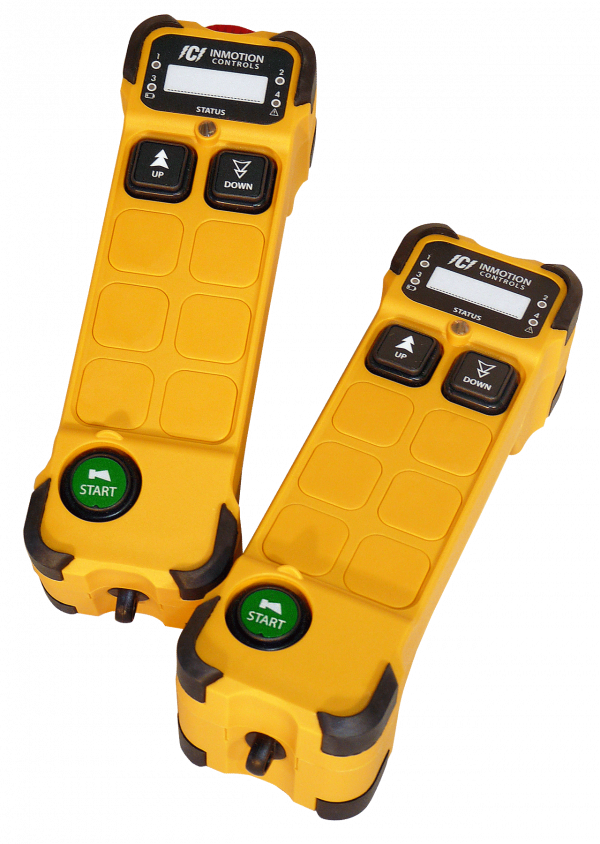

| TRANSMITTER (K202 – K808) | |
|---|---|
| Frequency | 433MHz |
| Modulation Method | 4 FSK |
| Typical Operating Range | 300 ft. (100M) |
| Power Supply | 2 X 1.5V “AA” Battery |
| Average Power Consumption | 16mA @ 3VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 193mm X 57mm X 51mm |

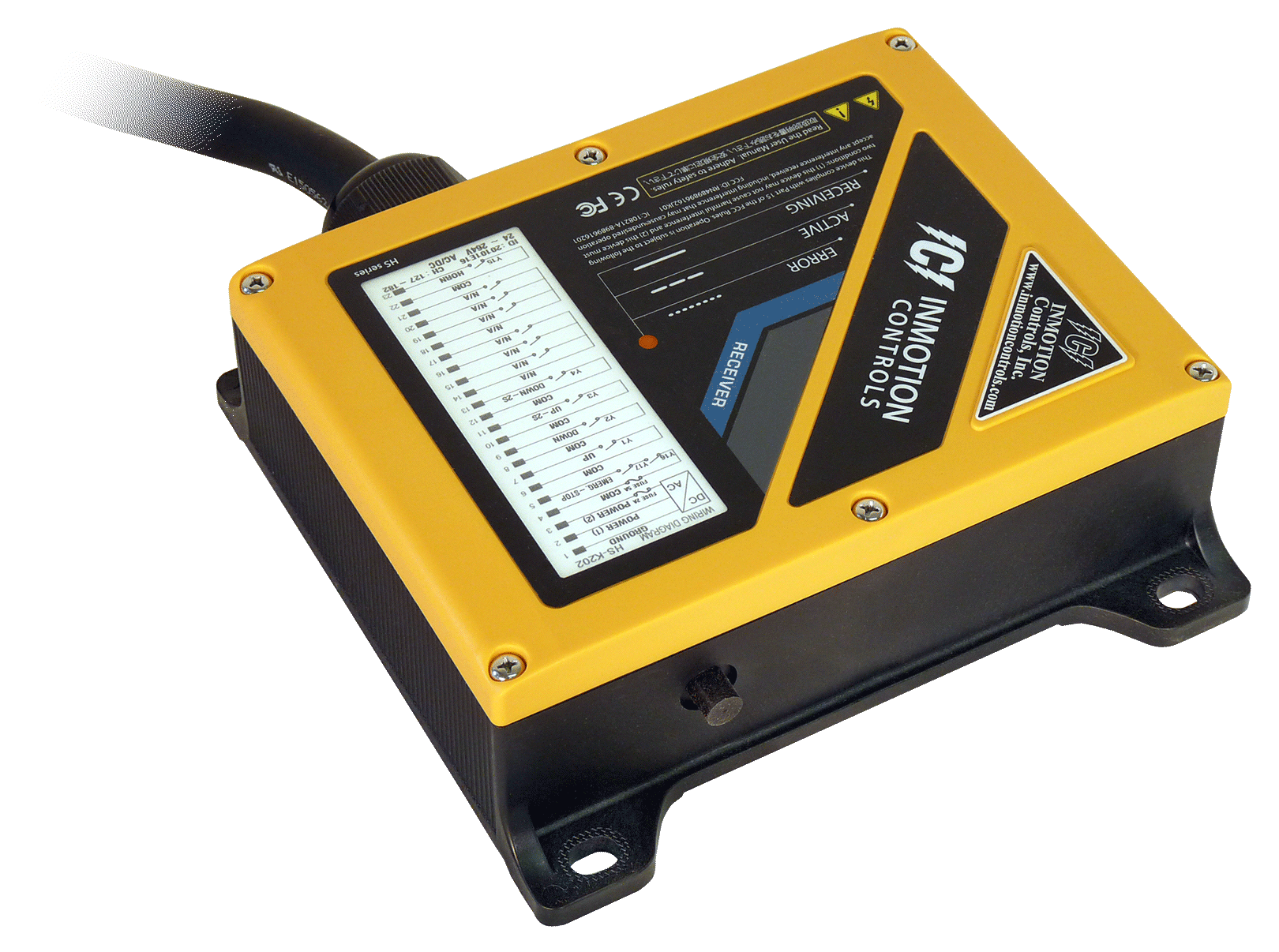

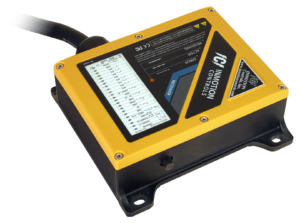

| RECEIVING UNIT (K202 – K808) | |
|---|---|
| Frequency | 433MHz |
| Control System | PLL |
| Power Supply | 24 – 240 VAC / 24 - 160 VDC (auto-sensing) |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 190mm X 184mm X 64mm |
| Installation and Mounting | Single Bolt |
Accessories
These accessories are available for purchase:
