K Series K400-SYSTEM

The K400 SYSTEM is a 2 motion, 1 step control solution for dual function equipment or monorail hoist and trolley applications.

  • 433Mhz Multi-frequency with Auto Selection
  • Bi-directional Communication
  • Auto Power Sensing 24 – 240 VAC / 24 – 160 VDC
  • Durable PA6 Construction with Shock Bumpers
  • Double Safety Stop MLC Relays
  • Interactive System Status LED’s

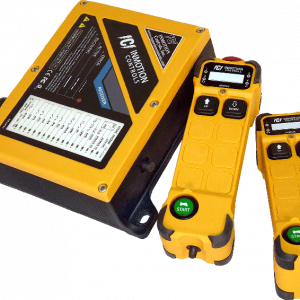

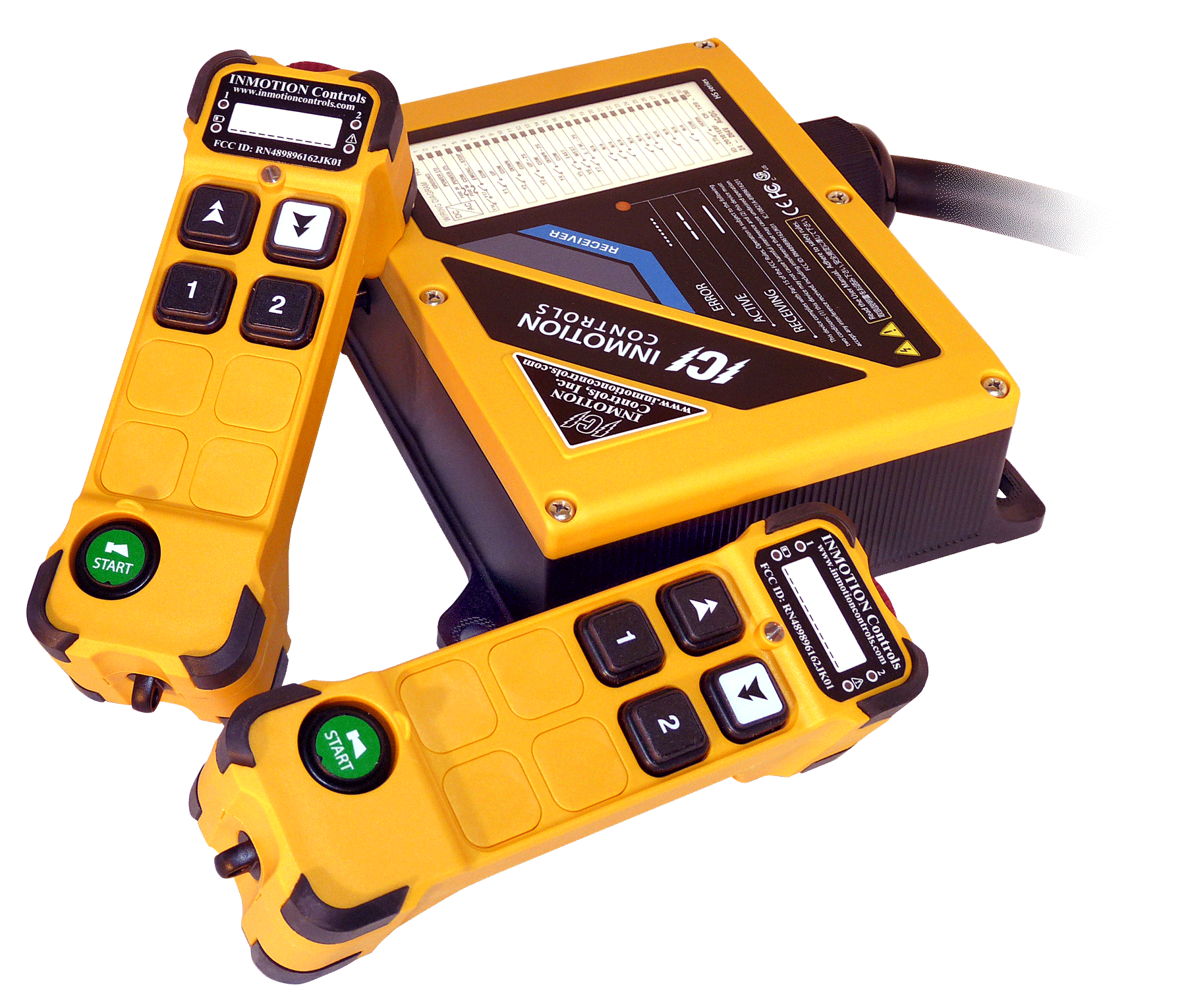

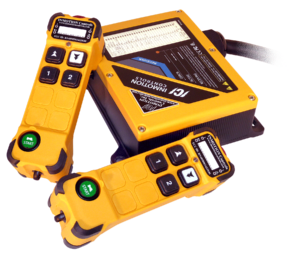

Each system includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware and installation instructions.

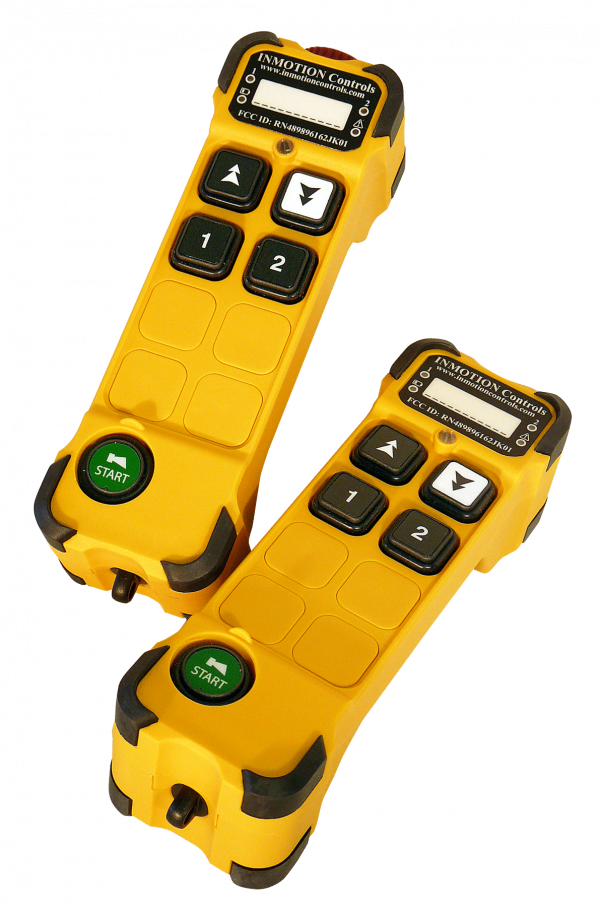

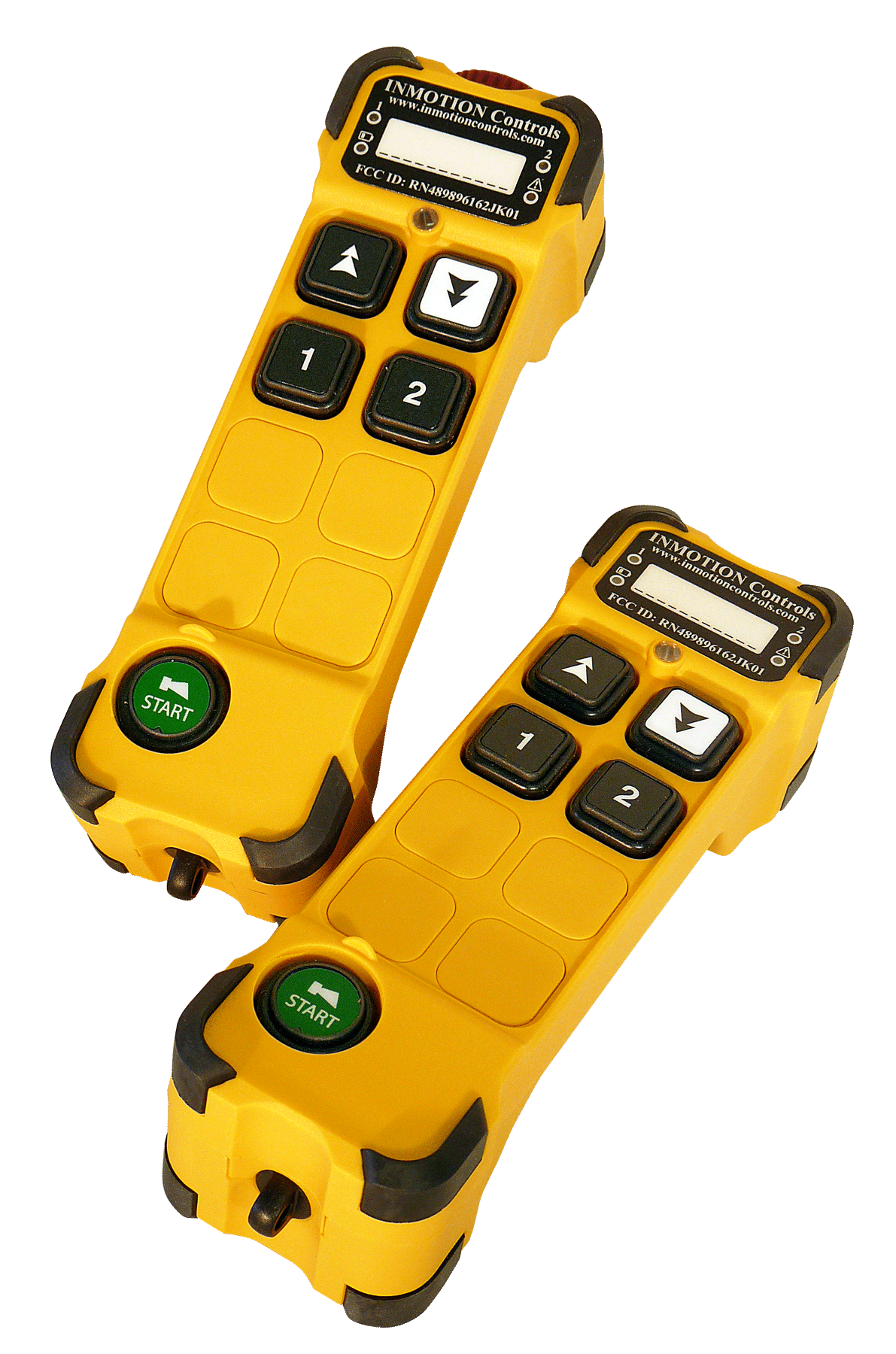

TRANSMITTER (K200 – K600)
Frequency 433MHz
Modulation Method 4 FSK
Typical Operating Range 300 ft. (100M)
Power Supply 2 X 1.5V “AA” Battery
Average Power Consumption 16mA @ 3VDC
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimension 193mm X 57mm X 51mm

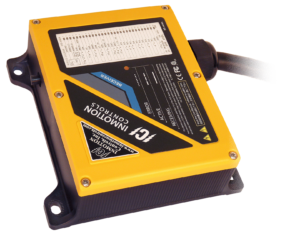

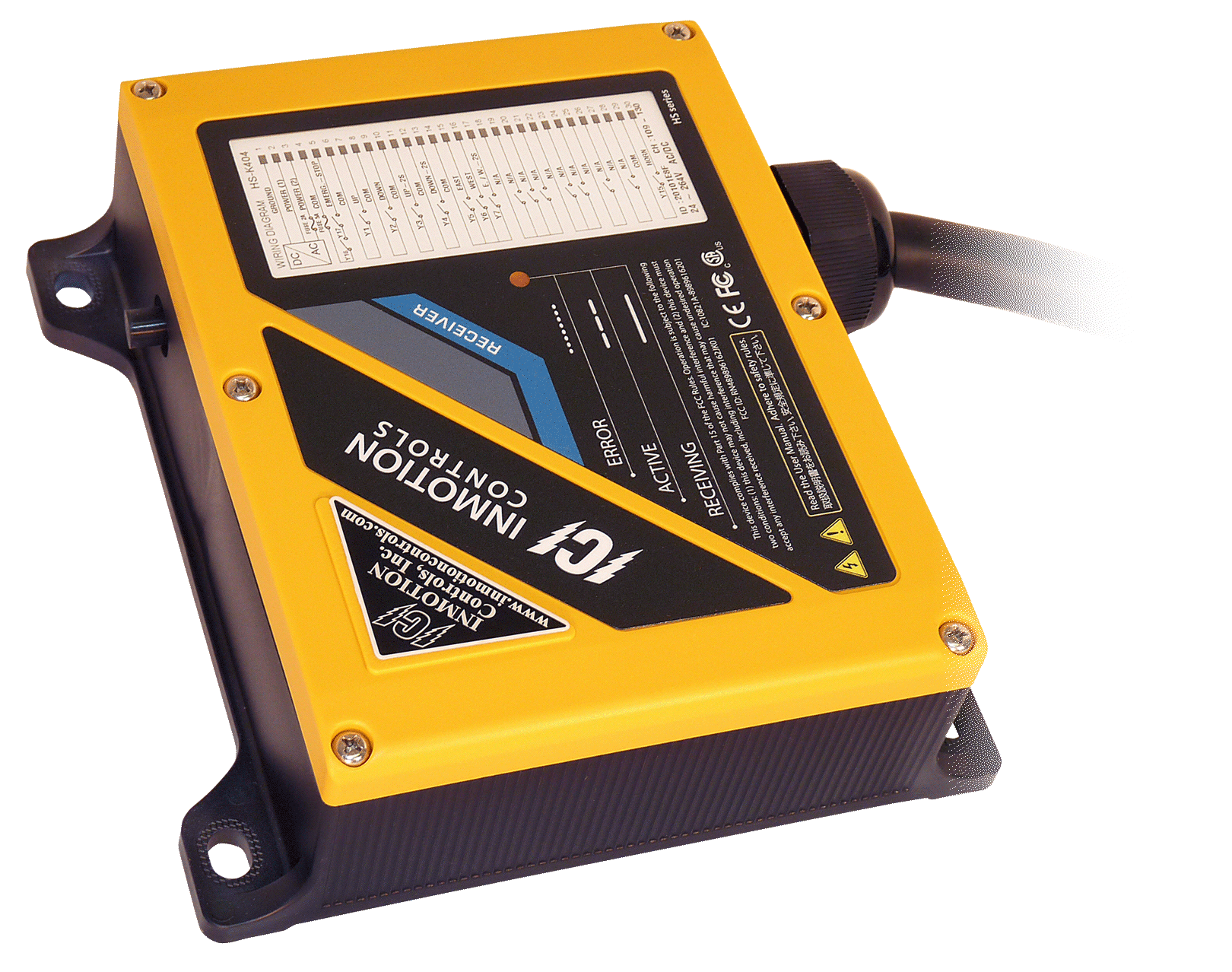

RECEIVING UNIT (K200 – K600)
Frequency 433MHz
Control System PLL
Power Supply 24 – 240 VAC / 24 - 160 VDC (auto-sensing)
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimensions 190mm X 184mm X 64mm
Installation and Mounting Single Bolt
