Classic Series 180-SYSTEM

The 180 SYSTEM is a 3 motion, 1 step control solution for three function control or crane bridge, hoist and trolley applications.

  • Lightweight, Small and User Friendly
  • Exceptionally Low Power Consumption
  • 300 Feet Line of Sight Nominal Operating Distance
  • Advanced RF with Over 4.1 Billion ID Codes
  • Shock Resistant Mounting Feet
  • Ideal for Mobile and Light-Duty Industrial Equipment

Each system includes one receiving unit, two transmitters with lanyard, batteries, mounting hardware and installation instructions.

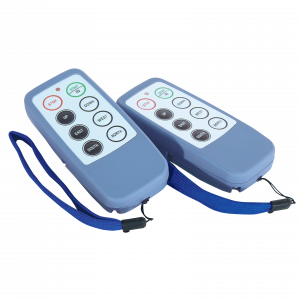

TRANSMITTER (140 - 180)
Frequency 310 MHz
Modulation Method 4 FSK
Typical Operating Range 300 ft. (100M)
Power Supply 2 X 1.5V “AA” Battery
Average Power Consumption 10mA Average
Operating Temperature -49F to + 176F
Protection Degree IP65
Housing Material Fiberglass / ABS
Overall Dimension 4.72 x 2.17 x 1 Inches

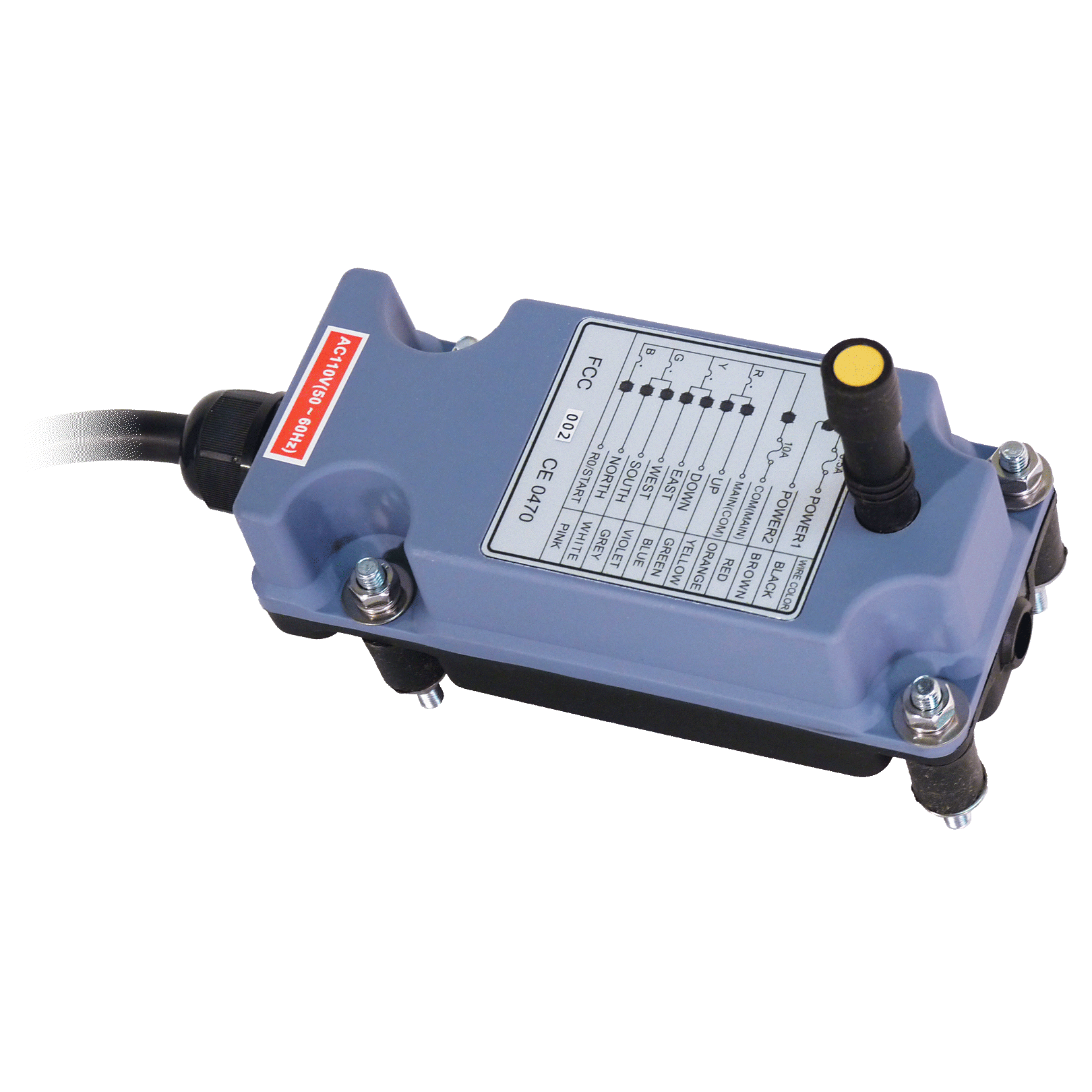

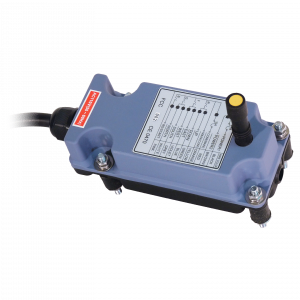

Frequency 310 MHz
Control System Crystal
Power Supply 110 ~120 VAC (Standard) 12/24/48/220 (Optional)
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material Fiberglass / ABS
Overall Dimensions 6.34 x 2.91 x 2.05 Inches
Installation and Mounting Four Bolt
