Classic Series 220-1-SYSTEM

The 220-1 SYSTEM is a 1 motion, 2 step control solution for a single function control or monorail hoist applications.

  • Safety Emergency Off and Key Switch
  • Exceptionally Low Power Consumption
  • 300 Feet Line of Sight Nominal Operating Distance
  • Advanced RF with Over 4.1 Billion ID Codes
  • Shock Resistant Mounting Feet
  • Ideal for Mobile and Light-Duty Industrial Equipment

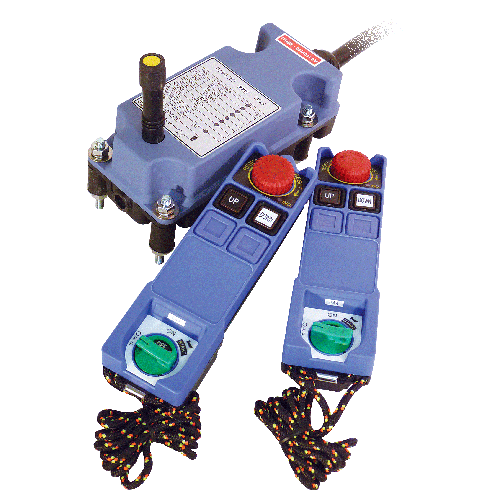

Each system includes one receiving unit, two transmitters with lanyard, batteries, mounting hardware and installation instructions.

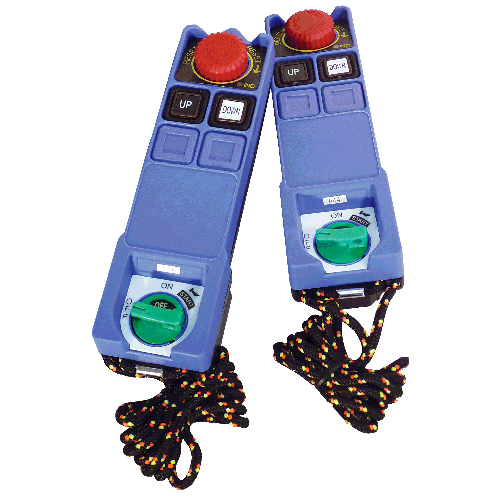

TRANSMITTER (220 - 260)
Frequency 310 MHz
Modulation Method 4 FSK
Typical Operating Range 300 ft. (100M)
Power Supply 2 X 1.5V “AA” Battery
Average Power Consumption 10mA Average
Operating Temperature -49F to + 176F
Protection Degree IP65
Housing Material Fiberglass / ABS
Overall Dimension 6.4 x 1.9 x 1.8 Inches
RECEIVING UNIT (220 - 260)
Frequency 310 MHz
Control System Crystal
Power Supply 110 ~120 VAC (Standard)
12/24/48/220 (Optional) Operating Temperature
-40F to + 149F Protection DegreeIP65
Housing Material Fiberglass / ABS
Overall Dimensions 6.34 x 2.91 x 2.05 Inches
Installation and Mounting Four Bolt
