Classic Series 532-H-SYSTEM

The 532-H SYSTEM is an economical 3 motion, 2 step control solution for a multiple function control for crane hoist, trolley and bridge applications where an horn is required.

  • Safety Emergency Off and Sealed Start Button and Horn
  • Exceptionally Low Power Consumption
  • 300 Feet Line of Sight Nominal Operating Distance
  • Advanced RF with Over 4.1 Billion ID Codes
  • Shock Resistant Mounting Post
  • Ideal for Complex Industrial Equipment

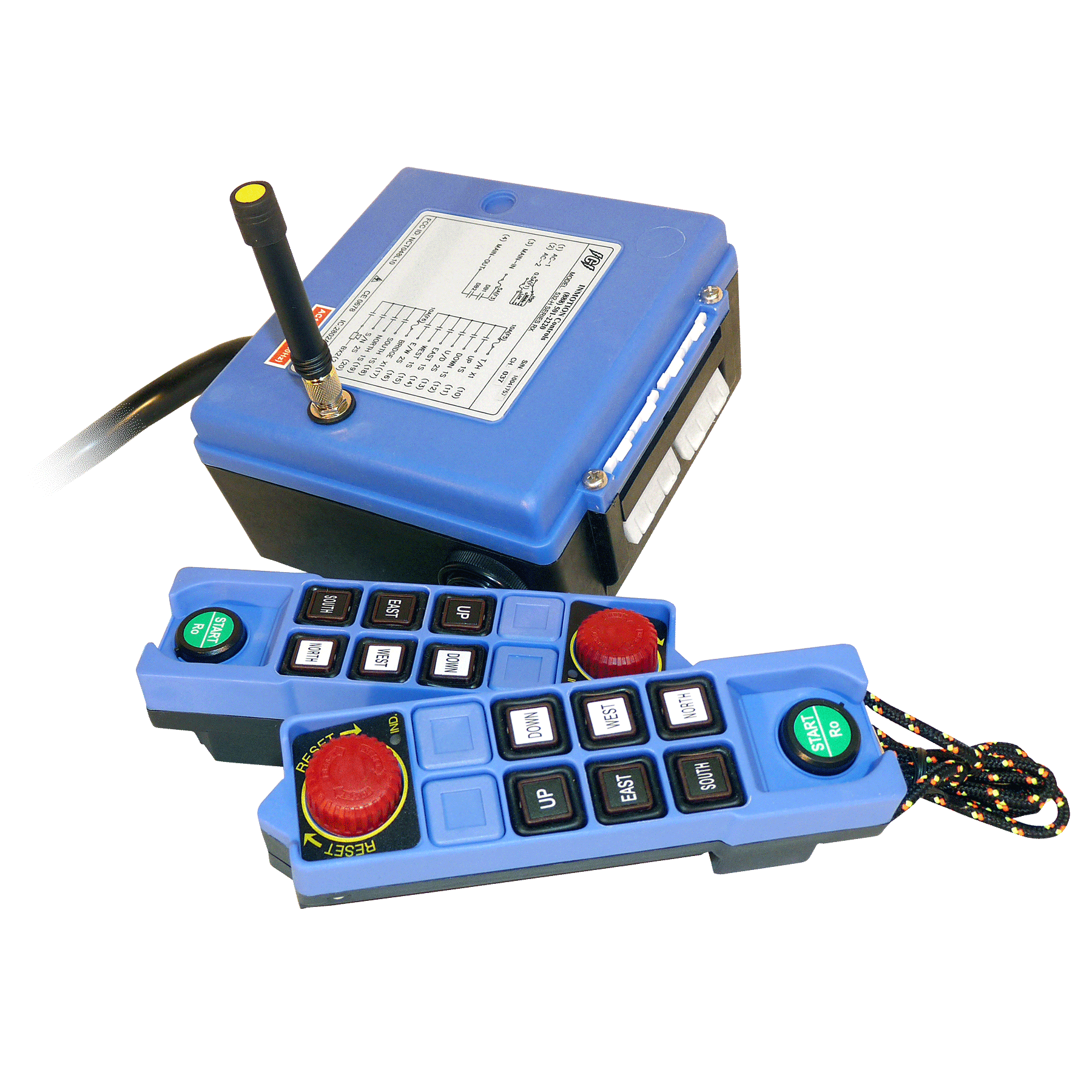

Each system includes one receiving unit, two transmitters with lanyard, batteries, mounting hardware and installation instructions.

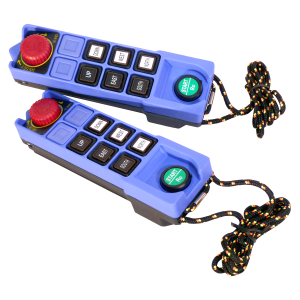

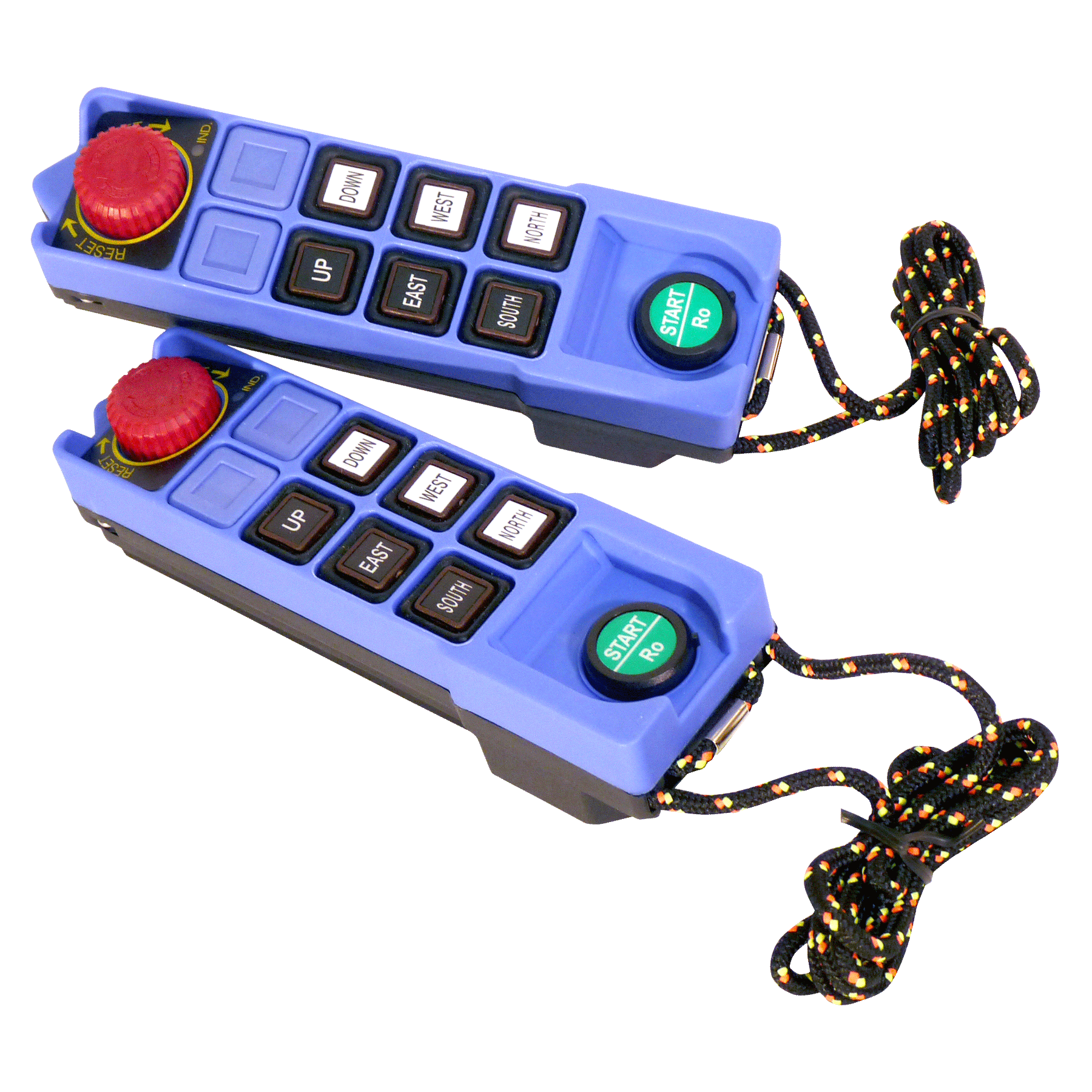

TRANSMITTER (310 - 532)
Frequency 310 MHz
Modulation Method 4 FSK
Typical Operating Range 300 ft. (100M)
Power Supply 2 X 1.5V “AA” Battery
Average Power Consumption 40mA Average
Operating Temperature -49F to + 176F
Protection Degree IP65
Housing Material Fiberglass / ABS
Overall Dimension 6.4 x 1.9 x 1.8 Inches

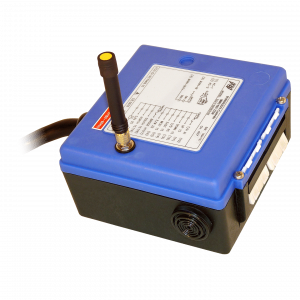

RECEIVING UNIT (310 - 532)
Frequency 310 MHz
Control System Crystal
Power Supply 110 ~120 VAC (Standard) 12/24/48/220 (Optional)
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material Fiberglass / ABS
Overall Dimensions 6.57 x 6.06 x 3.46 Inches
Installation and Mounting Single Bolt
