K Plus Series K1616 Plus System
The K1616 PLUS SYSTEM is an 8 motion, 2 step control solution for a multi-function control or bridge, hoist and trolley applications requiring additional multi-speed outputs.
- Complies with UL 61010-1 and CSA C22.2
- “Qi” Wireless Charging (transmitter)
- G-Force Shock Detection with Disable
- Operating Voltage 90 – 240 VAC / 90 – 160 VDC
- NiMH Transmitter Batteries Included
- 900MHz FCC, IC and CE Compliant
- IP 65, PA6 Nylon – 30% Glass Filled Enclosure

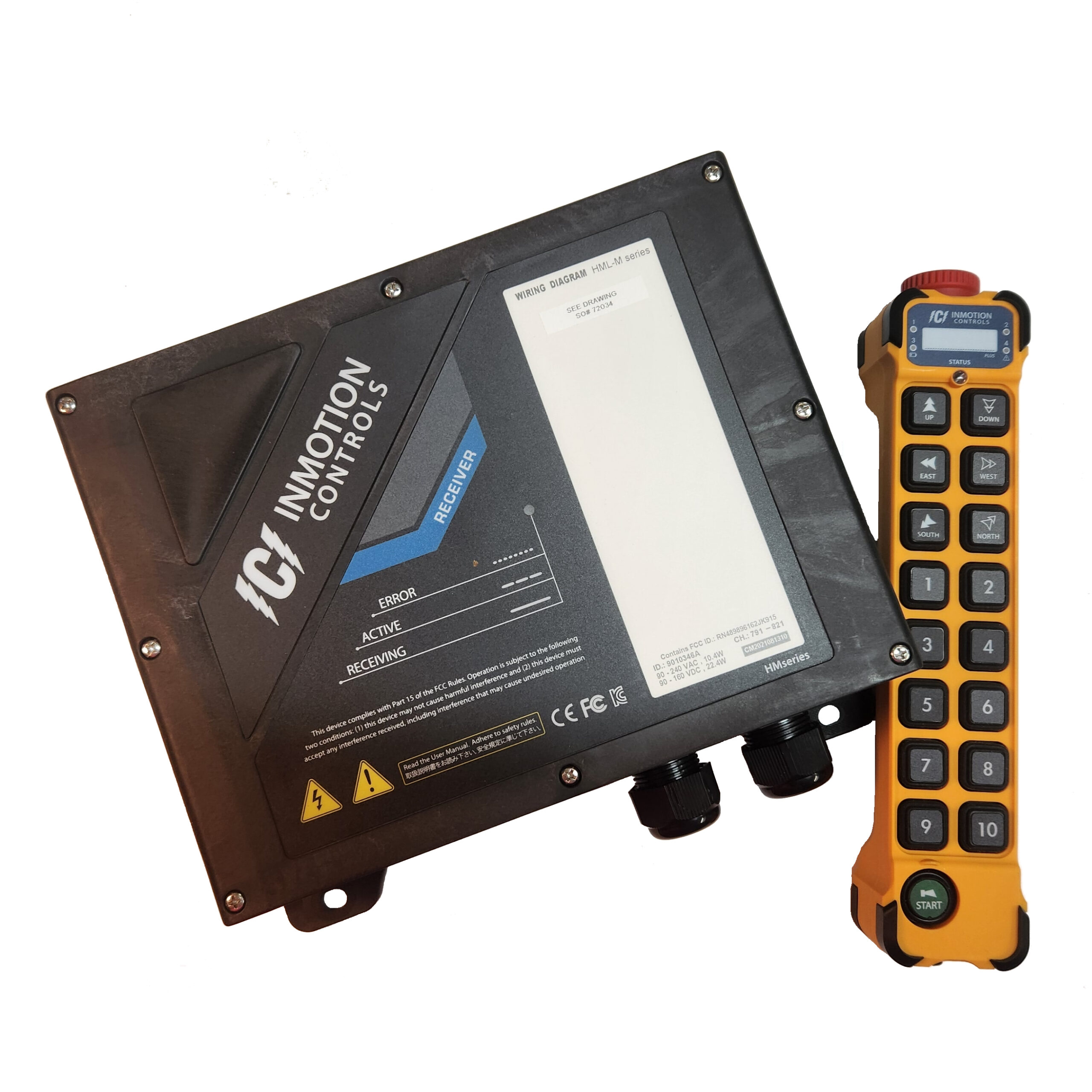

Each system includes one receiving unit, one transmitter with legend set, batteries, mounting hardware and installation instructions.

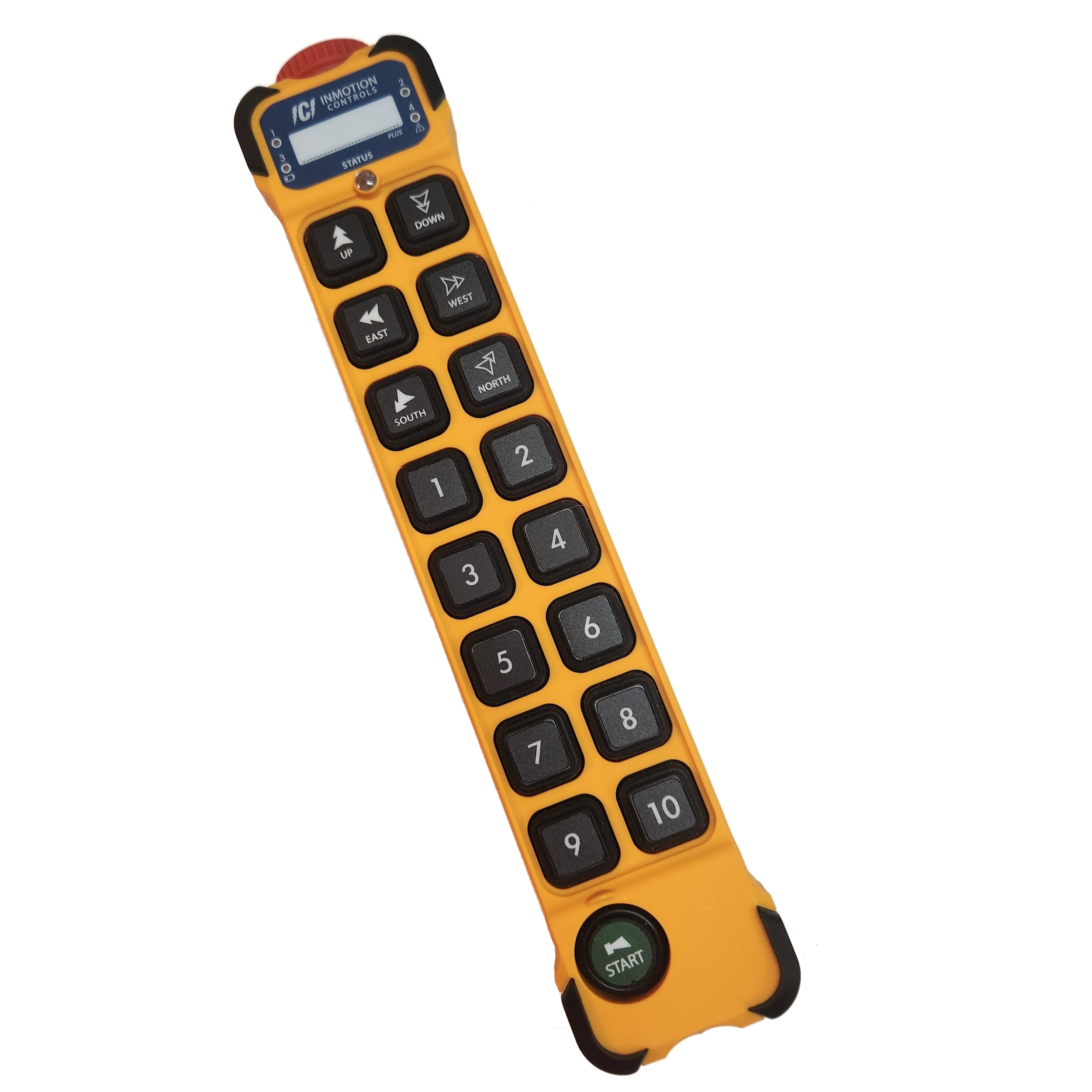

| TRANSMITTER (K1616 PLUS) | |
|---|---|
| Frequency | 902.5 – 927.5 MHz |
| Modulation Method | 2GFSK |
| Typical Operating Range | 300 feet (100 Meters) |
| Power Supply | 2 X 1.5V NiMH “AA” Battery |
| Average Power Consumption | 30mA @ 3VDC |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimension | 290mm x 57mm x 51mm |
| RECEIVING UNIT (M Series) | |
|---|---|
| Frequency | 902.5 – 927.5 MHz |
| Control System | PLL |
| Power Supply | 90 – 240 VAC / 90 – 160 VDC (auto-sensing) |
| Operating Temperature | -40F to + 149F |
| Protection Degree | IP65 |
| Housing Material | PA6 (30% Glass Filled) |
| Overall Dimensions | 272mm x 260mm x 96mm |
| Installation and Mounting | Four Bolts |
