Hazardous Locations K400 EQX System

The K400-EQX SYSTEM is a 2 motion, 1 step control solution for a dual function control or monorail hoist and trolley applications in hazardous locations.

  • Transmitter Approved for Class I, II, III, Division 2 Groups A, B, C, D, E, F, G
  • “Qi” Wireless Charging (transmitter)
  • Optional G-Force Shock Detection
  • Operating Voltage 24 – 240 VAC / 24 – 160 VDC
  • NiMH Transmitter Batteries Included
  • 900MHz FCC, IC and CE Compliant
  • IP 65, PA6 Nylon – 30% Glass Filled Enclosure

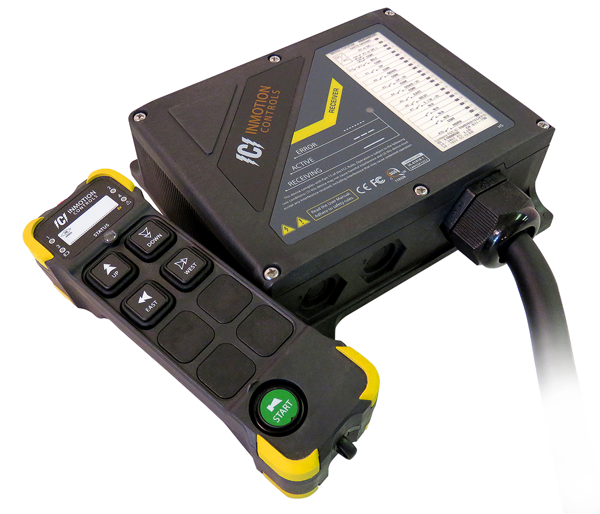

Each system includes one receiving unit, one transmitter with legend set, batteries, mounting hardware and installation instructions.

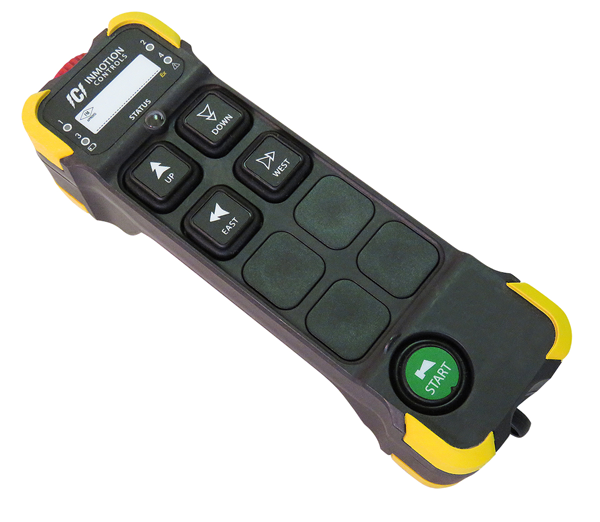

TRANSMITTER (K400-K808 EQX)
Frequency 902.5 – 927.5 MHz
Modulation Method 2GFSK
Typical Operating Range 300 feet (100 Meters)
Power Supply 2 X 1.5V NiMH “AA” Battery
Average Power Consumption 38mA @ 2.5VDC
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimension 193mm x 57mm x 51mm
RECEIVING UNIT (K400-K808 EQX)
Frequency 902.5 – 927.5 MHz
Control System PLL
Power Supply 24 – 240 VAC / 24 – 160 VDC (auto-sensing)
Operating Temperature -40F to + 149F
Protection Degree IP65
Housing Material PA6 (30% Glass Filled)
Overall Dimensions 190mm x 184mm x 64mm
Installation and Mounting Single Bolt
