Classic Series 410-SYSTEM
The 410 SYSTEM is a lightweight Belly Box 4 motion, 5 step dual Joystick control solution for a multiple function control for crane hoist, trolley and bridge applications.

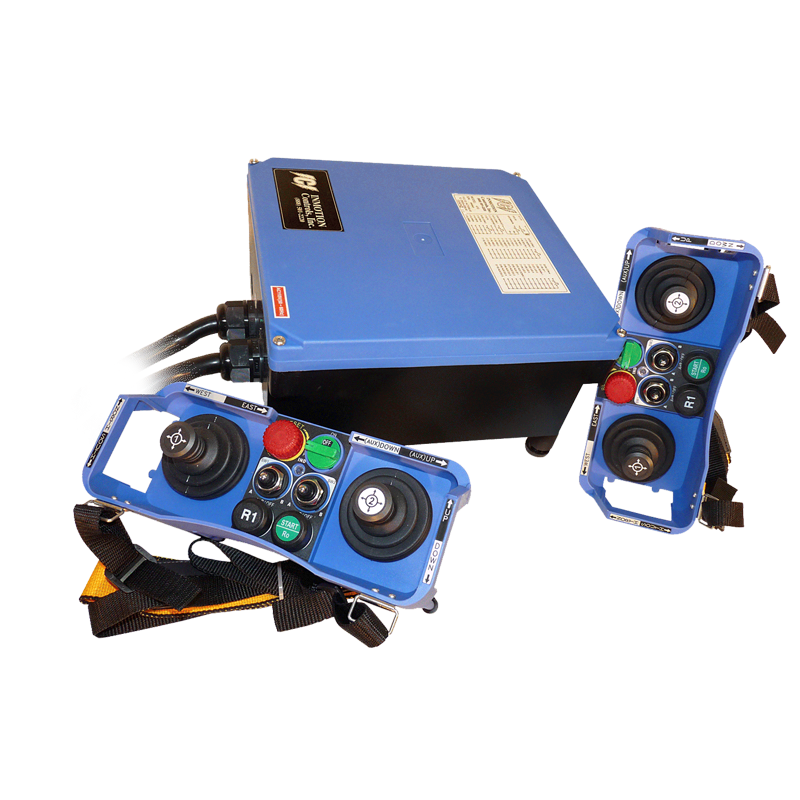

Each system includes one receiving unit, two transmitters with lanyard, batteries, mounting hardware and installation instructions.

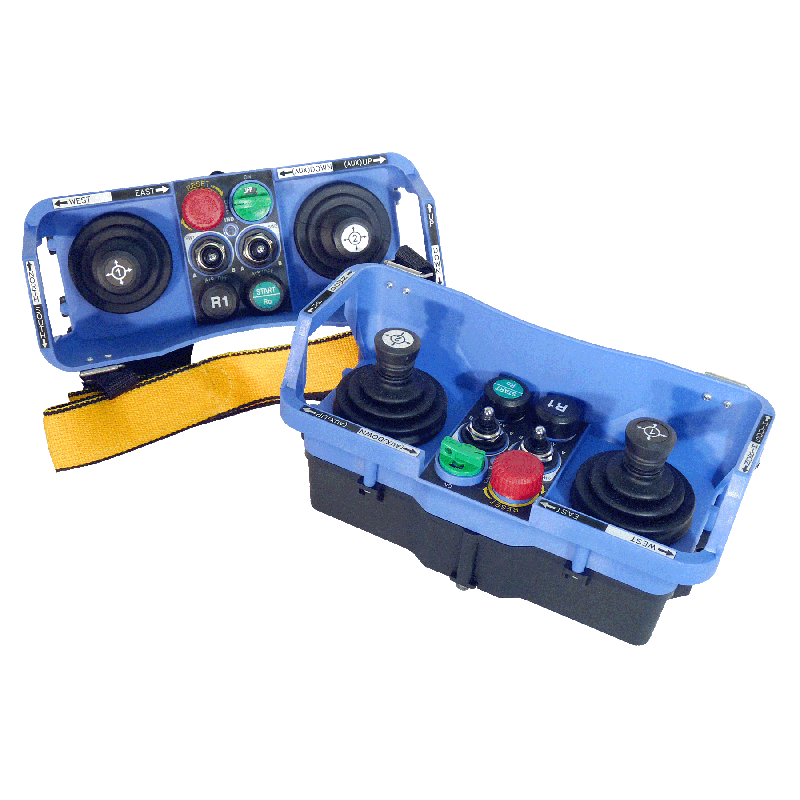

| Transmitter (410) | |
|---|---|
| Frequency | 310 MHz |
| Modulation Method | 4 FSK |
| Typical Operating Range | 300 ft. (100M) |
| Power Supply | 4 X 1.5V “AA” Battery |
| Average Power Consumption | 45mA Average |
| Operating Temperature | -22F to + 167F |
| Protection Degree | IP65 |
| Housing Material | Fiberglass / ABS |
| Overall Dimension | 9.125 x 3.74 x 4.33 Inches |

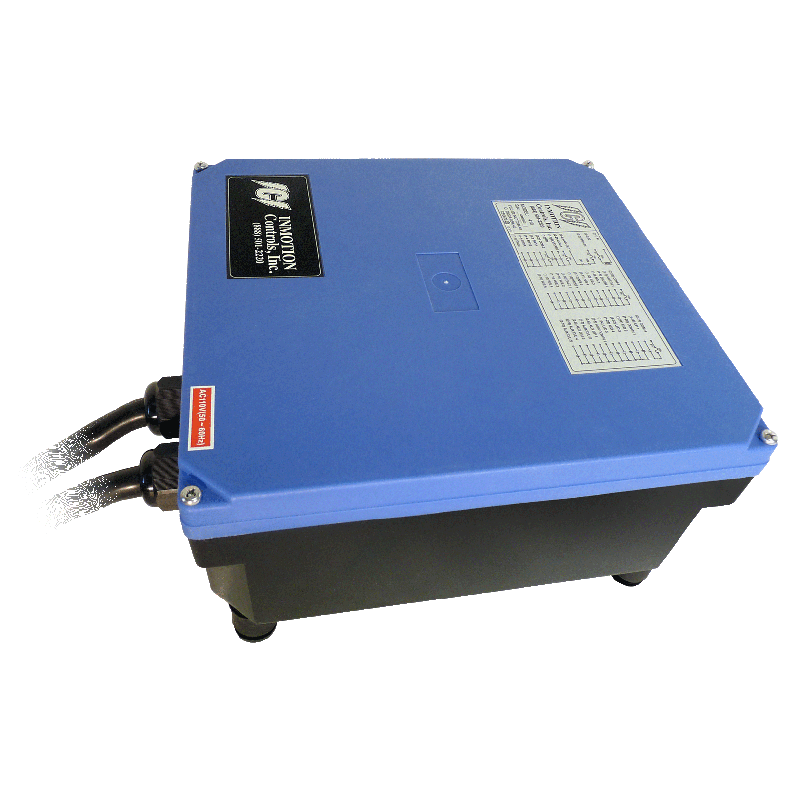

| RECEIVING UNIT (410) | |
|---|---|
| Frequency | 310 MHz |
| Control System | Crystal |
| Power Supply | 110 ~120 VAC (Standard) 12/24/48/220 (Optional) |
| Operating Temperature | -22F to + 167F |
| Protection Degree | IP65 |
| Housing Material | Fiberglass / ABS |
| Overall Dimensions | 9.96 x 10.5 x 5.91Inches |
| Installation and Mounting | Single Bolt |
Accessories
These accessories are available for purchase:
